wineo SRL 320 SD, Wineo soundPROTECT Special SD 4,0

The all-rounder with long-life performance

quiet, efficient, for a stable click connection

The soundPROTECT SPECIAL SD impact sound insulation with a thickness of 4 mm is the perfect solution as impact sound insulation and acoustic mat for all hard floor coverings such as laminate and parquet. We particularly recommend the soundPROTECT SPECIAL SD in connection with our laminate floors wineo 300, wineo 500 and wineo 550.

This underlay mat consists of up to 90 % renewable raw materials and is our sustainable solution in the field of impact sound insulation and underlays.

In addition to mineral fillers, we use rapeseed oil and castor oils - environmentally friendly and harmless to health. A sustainable protection for the environment and for comfortable room acoustics.

We recommend the soundPROTECT SPECIAL SD underlay mat as footfall sound insulation if there is no factory-laminated underlay mat on the laminate floor, or if you want to use this underlay mat as footfall sound insulation for your parquet floor.

The soundPROTECT SPECIAL SD underlay mat offers an even better impact sound reduction compared to the 2 mm version and also achieves better values in the walking sound reduction. With this underlay mat even minimal uneven spots can be compensated.

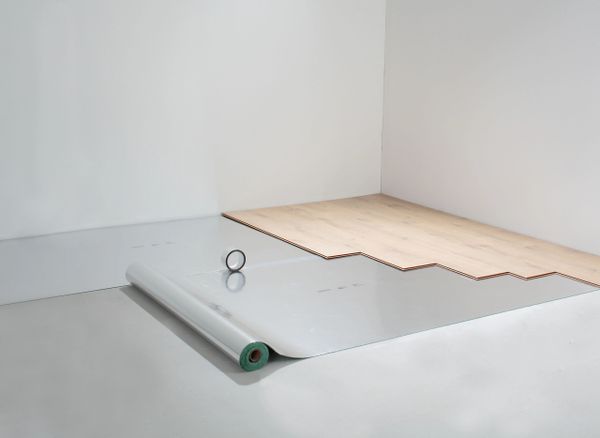

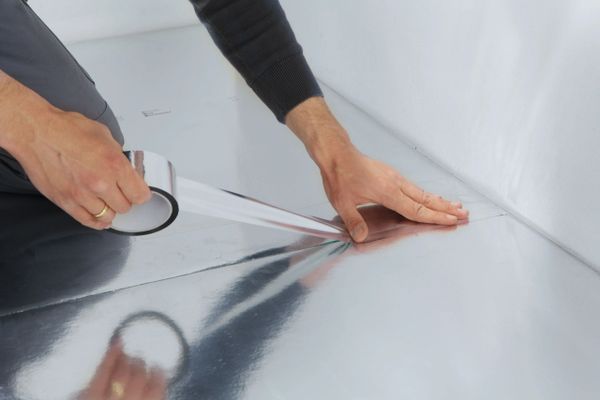

The soundPROTECT SPECIAL SD can also be laid directly on mineral substrates (e.g. screed), you do not need an additional PE vapour barrier and thus save an additional work step during installation.  All you have to do is glue the sheets of the underlay mat to the joint edges with the wineo Combi sealing tape.

• Fast, energy-efficient distribution of floor heat
• Long-life performance of at least 30 years
• Certified sustainability
• Excellent noise reduction on hard and soft floors
• Made with ecuran
• Sustainable raw materials
• Without chlorine, plasticizers and solvents
• Integrated vapour barrier when gluing the joint edges with Combi sealing tape

Technical features soundPROTECT PROFI SD

Base material: ecuran (bio-polyurethane)
PU = 40 rolls / pallet
Thickness: 4 mm | Width: 1 m | Length: 4 m | Weight: 3,2 kg / m²
Impact sound reduction: ~ 20 dB
Walking noise emission: ~ 31 %
Thermal resistance: 0.01(m²K)/W
SD value: > 75 m
